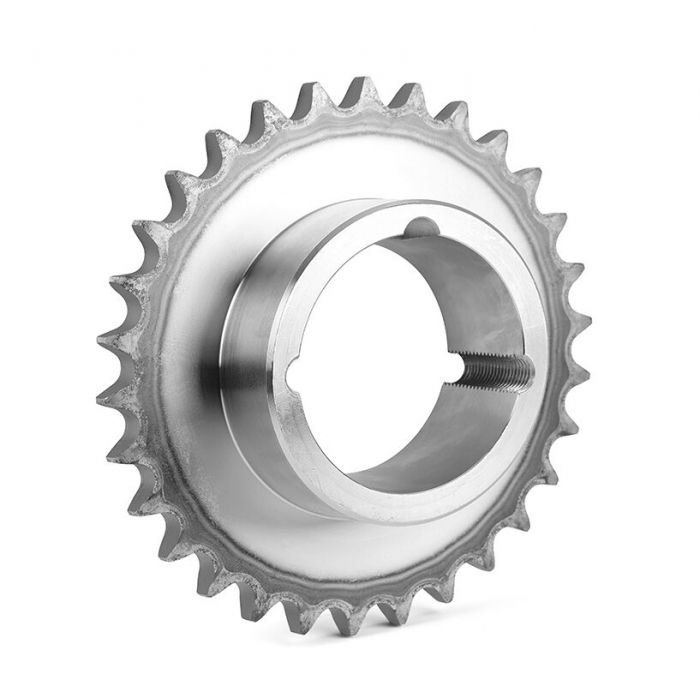

B12-08B2T021F06 - British Std. DUPLEX Sprocket TAPERBORED (NORMAL Fit - Boss Side) 08B-2 (1/2" Pitch x 5/16") x 21 teeth - With Flame Harden Teeth to suit 1610 Bush
Price on enquiry
Out of stock
SKU
B12-08B2T021F06
Enquire About This Product
B12-08B2T021F06 - British Std. DUPLEX Sprocket TAPERBORED (NORMAL Fit - Boss Side) 08B-2 (1/2" Pitch x 5/16") x 21 teeth - With Flame Harden Teeth to suit 1610 Bush — B12-08B2T021F06
B12-08B2T021F06 - British Std. DUPLEX Sprocket TAPERBORED (NORMAL Fit - Boss Side) 08B-2 (1/2" Pitch x 5/16") x 21 teeth - With Flame Harden Teeth to suit 1610 Bush
B12-08B2T021F06 - British Std. DUPLEX Sprocket TAPERBORED (NORMAL Fit - Boss Side) 08B-2 (1/2" Pitch x 5/16") x 21 teeth - With Flame Harden Teeth to suit 1610 Bush
These ranges of Induction Harden Teeth Sprockets are to suit B.S. Std Simplex Roller Chains to BS228/DIN8187/ISO606R.
Taper Bored/Brushed
This stock range of Simple & Duplex Pilot Bore Sprockets and Simpler Taper Bored with Induction Harden Teeth to min HRC45 to Max HRC55 are designed to cater for the chain drives with a gearing ratio of more that 1:1, where the smaller drive sprocket is rotating at a higher speed and is therefore in more contact with the harden roller and in turn presents more wear or for any application where excessive wear is undesirable.
In addition to this stock range we can provide a Flame Hardening Service to any of the standard stock range sizes that are produced from C45 Carbon Streel (Price and availability on request).
These sprockets can be machined to fulfil any of the following criteria:
To suit an imperial shaft size.
To suit a metric shaft size not listed in the standard shaft ready pre-machined range.
To suite a customer's own requirements.
Need a Sprocket pre-machined & ready to fit a Metric Shaft?
Beside these Pilot Bore and Taper Bushed range of sprockets with Induction Harden Teeth, the company also produced a shaft ready pre-machined Simplex range, which are finished bored and keyways centred on one tooth suitable for pairing, complete with 2 Grub screws and Induction Harden Teeth to suit metric shaft sizes.
Taper Bored/Brushed
This stock range of Simple & Duplex Pilot Bore Sprockets and Simpler Taper Bored with Induction Harden Teeth to min HRC45 to Max HRC55 are designed to cater for the chain drives with a gearing ratio of more that 1:1, where the smaller drive sprocket is rotating at a higher speed and is therefore in more contact with the harden roller and in turn presents more wear or for any application where excessive wear is undesirable.
In addition to this stock range we can provide a Flame Hardening Service to any of the standard stock range sizes that are produced from C45 Carbon Streel (Price and availability on request).
These sprockets can be machined to fulfil any of the following criteria:
To suit an imperial shaft size.
To suit a metric shaft size not listed in the standard shaft ready pre-machined range.
To suite a customer's own requirements.
Need a Sprocket pre-machined & ready to fit a Metric Shaft?
Beside these Pilot Bore and Taper Bushed range of sprockets with Induction Harden Teeth, the company also produced a shaft ready pre-machined Simplex range, which are finished bored and keyways centred on one tooth suitable for pairing, complete with 2 Grub screws and Induction Harden Teeth to suit metric shaft sizes.
| Product Family | Drive Sprockets (with Boss) |
|---|---|
| Chain Standard | British Standard |
| Plex | Duplex |
| Pitch | 1/2" (12.7 mm) |
| Number of Teeth | 21 |
| Bore Type | Taper Bored |
| Component Type | Sprocket |
| Chain Reference | 08B-2 |
| Internal Chain Width | 7.9375 mm |
| Taper Bush Reference | 1610 |
| Mounting Orientation | Normal |
| Tooth Hardening | Flame Hardened |
