C05-63SB-026 -ANSI SIDE BOW 63SB CONN LINK (SPRING CLIP TYPE)
Price on enquiry
Out of stock
SKU
C05-63SB-026
Enquire About This Product
C05-63SB-026 -ANSI SIDE BOW 63SB CONN LINK (SPRING CLIP TYPE) — C05-63SB-026
C05-63SB-026 -ANSI SIDE BOW 63SB CONN LINK (SPRING CLIP TYPE)
C05-63SB-026 -ANSI SIDE BOW 63SB CONN LINK (SPRING CLIP TYPE)

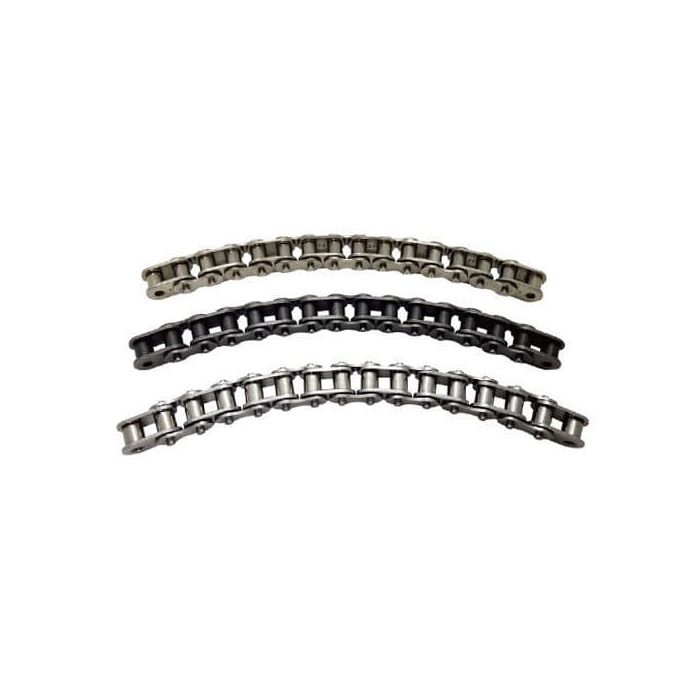

Carbon Steel Side Bow Chains based on ANSI B 29.1/Din8188 standards
Side Bow or Curve Chains are the same as the standard Carbon series except that the clearance between the Pin and the Bush and the Inner and Outer plates has been increases to allow for lateral displacement, so that the chain can be driven through a bend.
Precision Roller Chains: as the company offer a combined range, that is produced by a number manufacturers from around the World, they have adopted the following Quality Standards :-
All chains have been produced in plant that is Certified to ISO 9001
Chains covered by the ISO 606R Standard, will conform to this Standard of Specification and Quality
For chains not covered by ISO 606R, then we have adopted the appropriate Din 8187 or Din 8188 or Ansi B 29.1 of Specification and Quality Standard.
Work standard chains not covered by the above standards will conform to the appropriate Manufacturer's Standard.
Side Bow or Curve Chains are the same as the standard Carbon series except that the clearance between the Pin and the Bush and the Inner and Outer plates has been increases to allow for lateral displacement, so that the chain can be driven through a bend.
Precision Roller Chains: as the company offer a combined range, that is produced by a number manufacturers from around the World, they have adopted the following Quality Standards :-
All chains have been produced in plant that is Certified to ISO 9001
Chains covered by the ISO 606R Standard, will conform to this Standard of Specification and Quality
For chains not covered by ISO 606R, then we have adopted the appropriate Din 8187 or Din 8188 or Ansi B 29.1 of Specification and Quality Standard.
Work standard chains not covered by the above standards will conform to the appropriate Manufacturer's Standard.
| Product Family | Roller Chains |
|---|---|
| Chain Standard | American Standard |
| Component Type | Spring Clip Connecting Links |
| Product Range | American Standard Side Bow or Curve Carbon Steel Roller Chains |
| Chain Joint / Fastening | Spring Clip |
| Chain Construction | Side Bow |
