I10-L2 - RCT Aluminium Linear Automatic Chain Tensioner Size L2 (Torque Range 350 Newtons)
£11.08
Out of stock
SKU
I10-L2
I10-L2 - RCT Aluminium Linear Automatic Chain Tensioner Size L2 (Torque Range 350 Newtons)
I10-L2 - RCT Aluminium Linear Automatic Chain Tensioner Size L2 (Torque Range 350 Newtons)
This Series of Automatic Spring Loaded Tensioners are available in three different design types, and are used to provide continious tension for Roller Chain Drives from 3/8" pitch to 1-1/2" Simple, Duplex & Triplex, via either a Roller Chain plate wheel or Arm Segment and with the additional option of Aluminium Roller that can be fitted to the T and L Series for Tensioning of Vee, Flat and Timing Belt Drives.
Aluminium Arm Rotational T Series
T1-180-250NT2-340-440N
This type can be supplied fitted with any of the following:
Arc Segment for Roller chains
Roller Chain Plate wheel assembly -15 tooth
Aluminium Roller for Vee Belt -Poly Vee Belt , Flat or Timing Belts
Or We can modify Any Drive sprocket or Pulley to suit this Arm
Aluminium Box (Spring)L Series
L1-66-250NL2-89-340NL3-100-450N
This type can be supplied fitted with any of the following:
Arc Segment for Roller chains
Roller Chain Plate wheel assembly -15 tooth
Aluminium Roller for Vee Belt -Poly Vee Belt , Flat or Timing Belts
Or We can modify Any Drive sprocket or Pulley to suit this Arm
Aluminium Box (Spring) LP Series
LP1-66-250NLP2-89-340NLP3-100-450N
These are supplied complete with a Arc Segment for Simplex, Duplex & Triplex Roller Chains
This Series of Automatic Spring Loaded Tensioners are available in three different design types, and are used to provide continious tension for Roller Chain Drives from 3/8" pitch to 1-1/2" Simple, Duplex & Triplex, via either a Roller Chain plate wheel or Arm Segment and with the additional option of Aluminium Roller that can be fitted to the T and L Series for Tensioning of Vee, Flat and Timing Belt Drives.

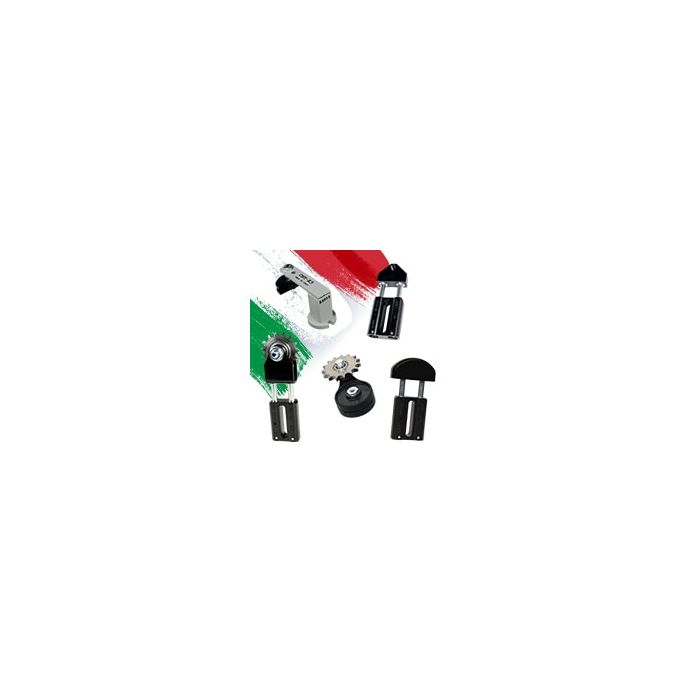

Picture shows 15 tooth Simplex & Duplex Roller Chain Idler Assembly for use with the T Arm or the L Box Tensioners.
Picture shows Arm Type T with Arch Segment for Roller Chain Tensioning.
Aluminium Arm Rotational T Series
T1-180-250NT2-340-440N
This type can be supplied fitted with any of the following:
Arc Segment for Roller chains
Roller Chain Plate wheel assembly -15 tooth
Aluminium Roller for Vee Belt -Poly Vee Belt , Flat or Timing Belts
Or We can modify Any Drive sprocket or Pulley to suit this Arm
Aluminium Box (Spring)L Series
L1-66-250NL2-89-340NL3-100-450N
This type can be supplied fitted with any of the following:
Arc Segment for Roller chains
Roller Chain Plate wheel assembly -15 tooth
Aluminium Roller for Vee Belt -Poly Vee Belt , Flat or Timing Belts
Or We can modify Any Drive sprocket or Pulley to suit this Arm
Aluminium Box (Spring) LP Series
LP1-66-250NLP2-89-340NLP3-100-450N
These are supplied complete with a Arc Segment for Simplex, Duplex & Triplex Roller Chains
This Series of Automatic Spring Loaded Tensioners are available in three different design types, and are used to provide continious tension for Roller Chain Drives from 3/8" pitch to 1-1/2" Simple, Duplex & Triplex, via either a Roller Chain plate wheel or Arm Segment and with the additional option of Aluminium Roller that can be fitted to the T and L Series for Tensioning of Vee, Flat and Timing Belt Drives.
Picture shows 15 tooth Simplex & Duplex Roller Chain Idler Assembly for use with the T Arm or the L Box Tensioners.
Picture shows Arm Type T with Arch Segment for Roller Chain Tensioning.
